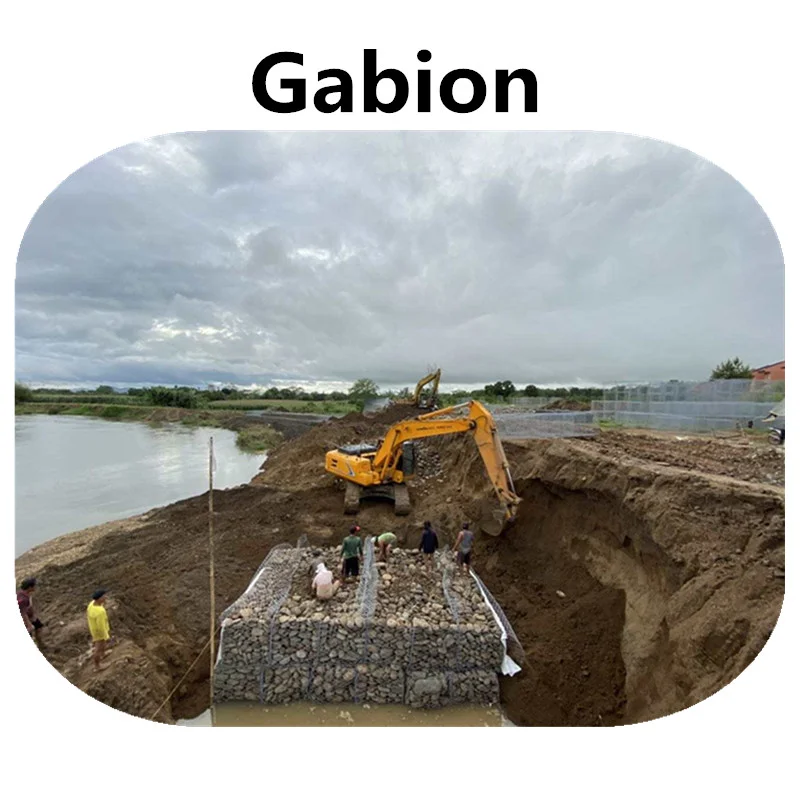

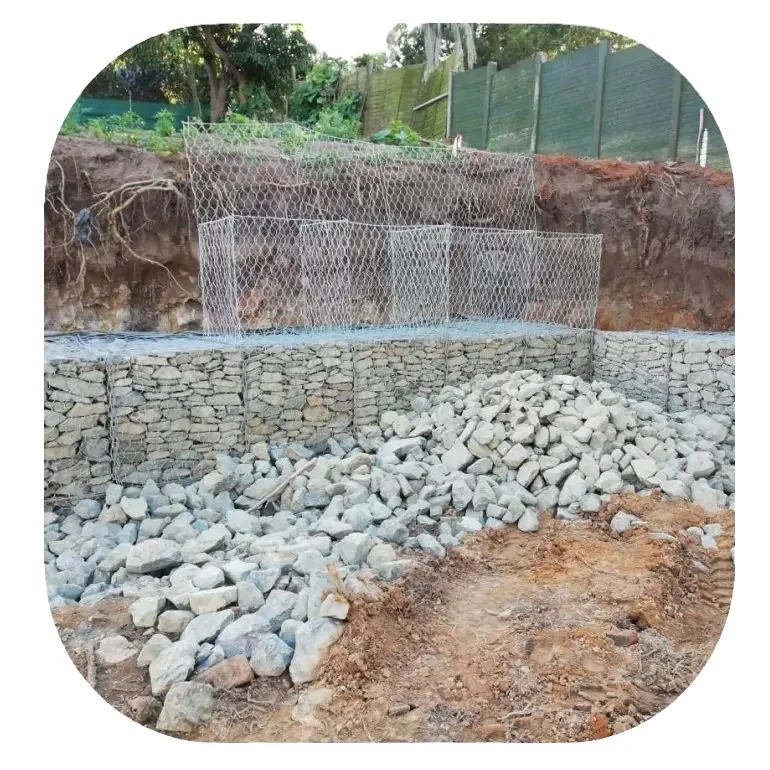

Gabion wire mesh/Hexagonal wire mesh,gabion mesh

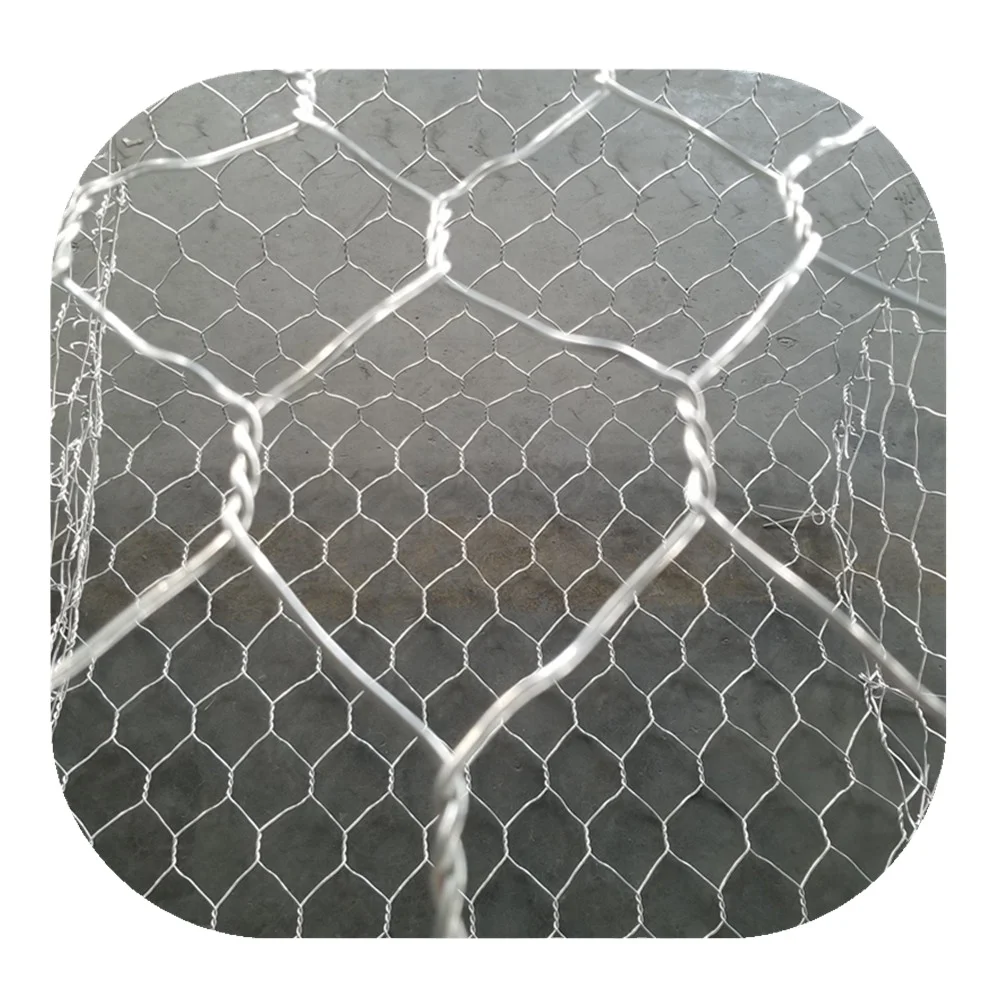

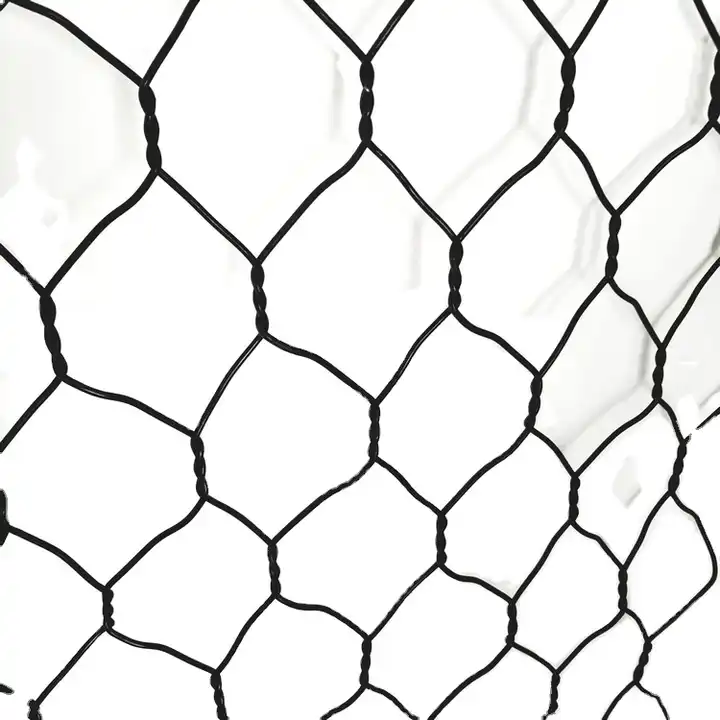

Hexagonal wire netting, also called chicken mesh, rabbit mesh, poultry mesh, is a steel galvanised hexagonal wire mesh for protecting newly planted trees, crops, plants, gardens, vegetable plots from small browsing animals. This kind of netting is manufactured from steel wire netting and is galvanised by electro or hot-dipping or pvc coated to protect against corrosion. The netting is firm in structure and flat in surface. It is widely used in industrial, agriculture, construction as reinforcement, and fencing.
1.Materials: galvanized iron wire, PVC coated iron wire
2.Surface treatment:
* Hot-dipped galvanized
* Electro galvanized

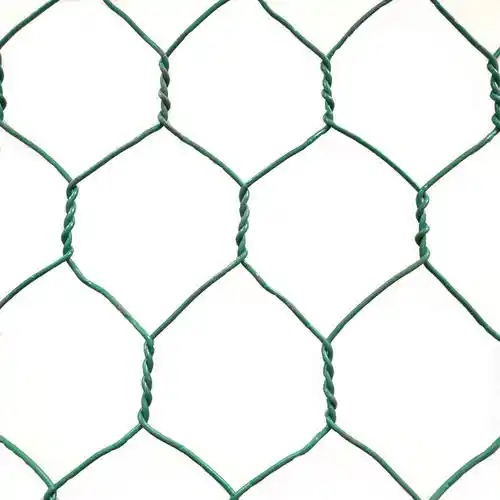

*PVC coated
3.Assortments available:
* Electro galvanized before or after weaving
* Hot dipped galvanized before or after weaving
* PVC coated before or after weaving
4.Features:
* Corrosion resistant
* Good permeation
* Simple installation
* Oxidation resistance
* Long service life
* Rust resistant
5.Specification
|
Hexagonal Wire Netting |
|||||
|
mesh |
Min. Gal.v. G/SQ.M |
Width |
Wire Gauge (Diameter) BWG |
||
|
Inch |
mm |
Tolerance(mm) |
|||
|
3/8″ |
10mm |
±1.0 |
0.7mm – 145 |
2′ – 1M |
27, 26, 25, 24, 23 |
|
1/2″ |
13mm |
±1.5 |
0.7mm – 95 |
2′ – 2M |
25, 24, 23, 22, 21 |
|
5/8″ |
16mm |
±2.0 |
0.7mm – 70 |
2′ – 2M |
27, 26, 25, 24, 23, 22 |
|
3/4″ |
20mm |
±3.0 |
0.7mm – 55 |
2′ – 2M |
25, 24, 23, 22, 21, 20, 19 |
|
1″ |
25mm |
±3.0 |
0.9mm – 55 |
1′ – 2M |
25, 24, 23, 22, 21, 20, 19, 18 |
|
1-1/4″ |
31mm |
±4.0 |
9mm – 40 |
1′ – 2M |
23, 22, 21, 20, 19, 18 |
|
1-1/2″ |
40mm |
±5.0 |
1.0mm – 45 |
1′ – 2M |
23, 22, 21, 20, 19, 18 |
|
2″ |
50mm |
±6.0 |
1.2mm – 40 |
1′ – 2M |
23, 22, 21, 20, 19, 18 |
|
2-1/2″ |
65mm |
±7.0 |
1.0mm – 30 |
1′ – 2M |
21, 20, 19, 18 |
|
3″ |
75mm |
±8.0 |
1.4mm – 30 |
2′ – 2M |
20, 19, 18, 17 |
|
4″ |
100mm |
±8.0 |
1.6mm – 30 |
2′ – 2M |
19, 18, 17, 16 |

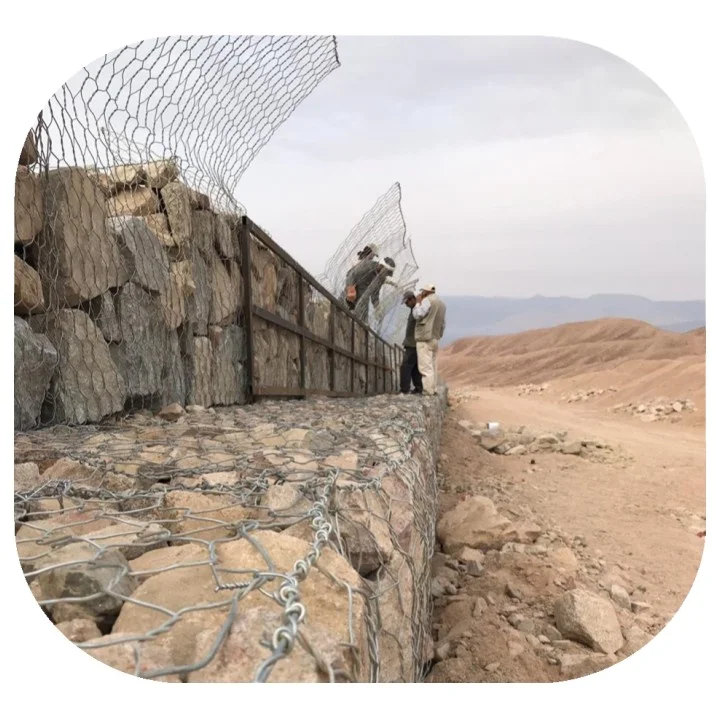

6. Application: used in a number of industries, such as fence for poultry, farms, bird cages, tennis court, also used as light reinforcement in splinter proof glass and cement concrete, laying of roads, or used for insulation in cold storage, and other structure.
