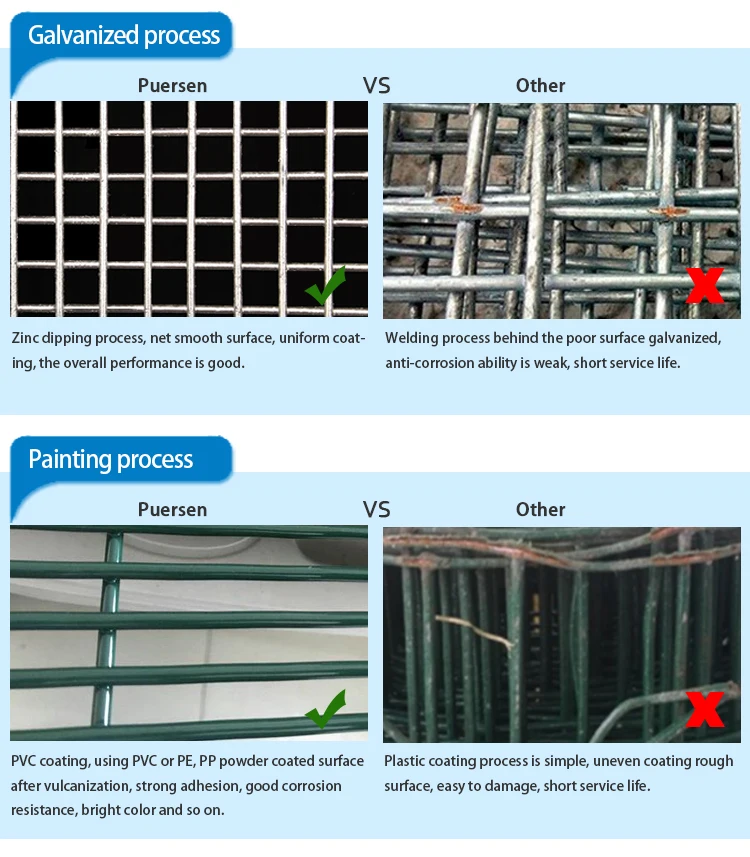

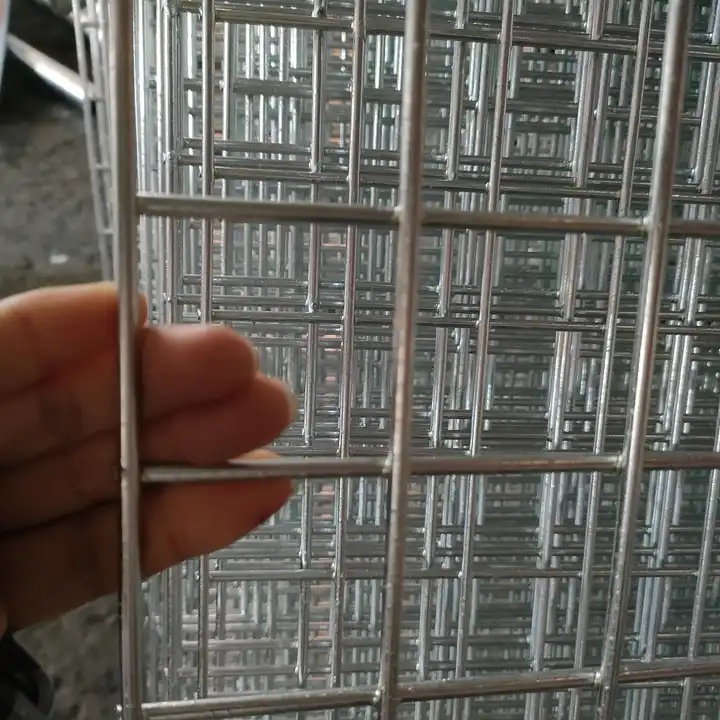

welded wire mesh panel also called welded wire mesh sheet or construction mesh sheet is made with plain steel wire welded together in square opening, then going through the hot dipped zinc coating process.
Application: Suitable product for constructing animal cages, enclosure works, fabricating of wire containers and baskets, grills,
partitions, machine protection fences, gratings and other construction applications.

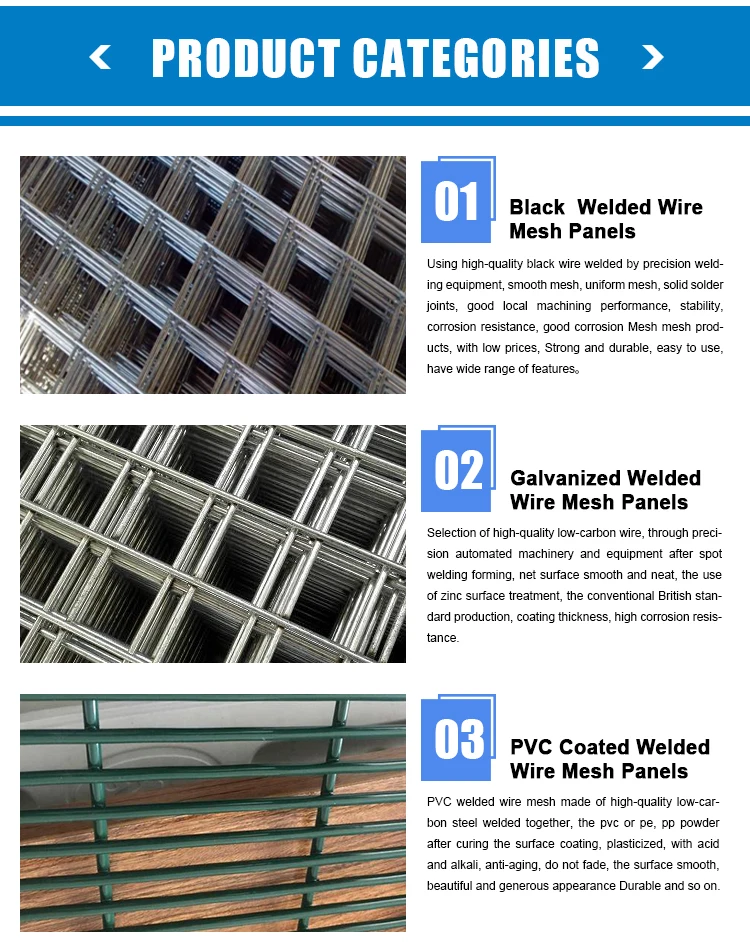

Electro Galvanized After/Before Welding;
PVC Coating With Green, Black, Color, Etc.
Welded Mesh made of Stainless Steel Wire.
|
Specification List of Welded Wire Mesh Panel |
||
|
Opening |
Wire Diameter(mm)
|
|
|
In inch |
In metric unit(mm) |
|
|
1″x1″ |
25mm x 25mm |
2.5mm,2.0mm,1.8mm,1.6mm |
|
2″x2″ |
50mm x 50mm |
2.5mm,2.0mm,1.8mm,1.6mm |
|
2″x3″ |
50mm x 70mm |
6.0mm,5.0mm,4.0mm,3.0mm,2.5mm,2.0mm,1.8mm |
|
2″x4″ |
50mm x 100mm |
6.0mm,5.0mm,4.0mm,3.0mm,2.0mm |
|
2″x6″ |
50mm x 150mm |
6.0mm,5.0mm,4.0mm,3.0mm |
|
2″x8″ |
50mm x 200mm |
6.0mm,5.0mm,4.0mm,3.0mm |
|
3″x3″ |
75mm x 75mm |
6.0mm,5.0mm,4.0mm,3.0mm,2.5mm,2.0mm,1.8mm,1.6mm |
|
3″x4″ |
75mm x 100mm |
6.0mm,5.0mm,4.0mm,3.0mm,2.5mm,2.0mm,1.8mm |
|
4″x4″ |
100mm x 100mm |
6.0mm,5.0mm,4.0mm,3.0mm |
|
6″x6″ |
150mm x 150mm |
6.0mm,5.0mm,4.0mm,3.0mm |
| Technical Note: | ||
|
1,Standard Panel length: 0.5-5.8m; width:0.5m to 2.4m |
||
Post time: Nov-16-2023
