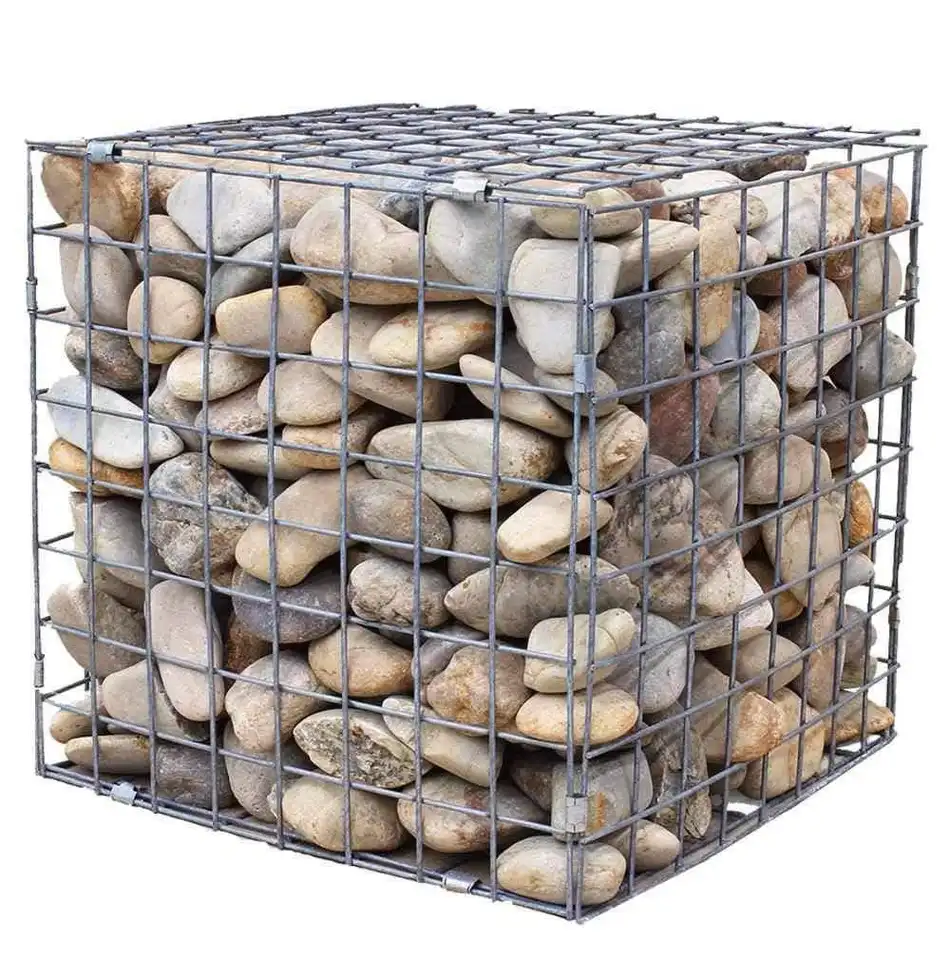

welded gabion mesh is made of welded wire mesh panel, it is assembled with a spiral-shaped wire to assemble the front and rear panels, the bottom plate and the partition after welding, and is packed together with the mesh cover. All the caged products that are folded and tied are an independent individual.

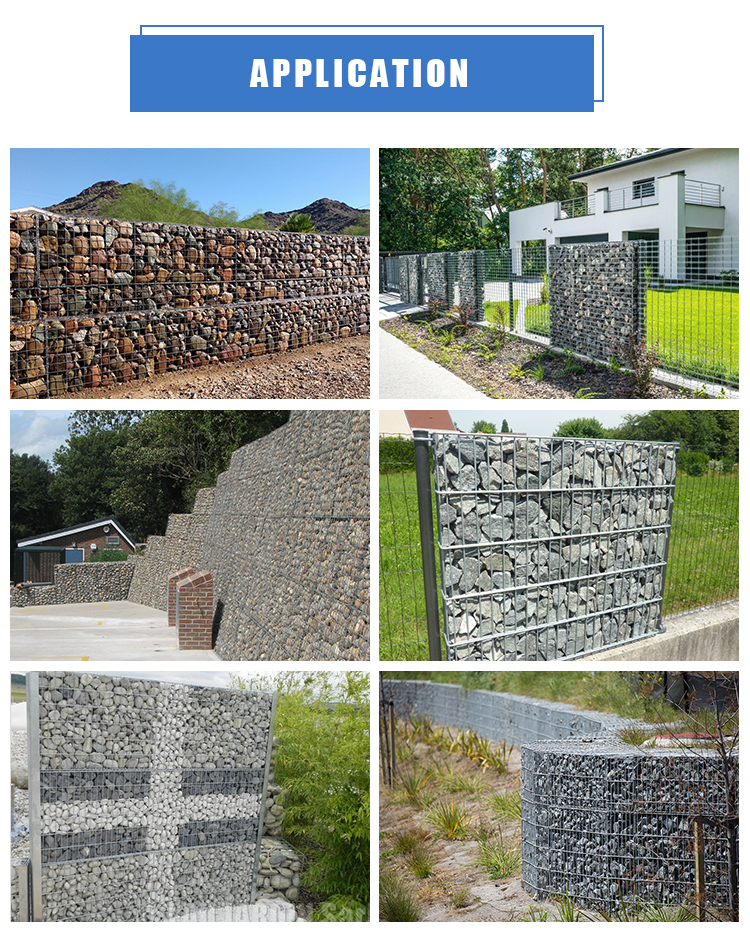

Welded gabion box applications:
Protective application: Landscape construction:
• Retaining wall. • Gabion bench.
• Slope protection. • Gabion planter.
• River channel controlling. • Fireplaces.
• Military defense. • Gabion staircase.
• Noise barrier wall. • Gabion pot.
• Bridge protection. • Gabion partition wall.
• Soil strengthening. • Gabion barbecue.
• Coastal protection. • Gabion waterfall.
• Flood controlling. • Gabion flower pot.
|
Specification of Garden Gabion Basket
|
|||
|
Gabion Size (mm)
L × W × H
|
Wire Diameter
mm
|
Mesh Size
cm
|
Weight
kg
|
|
100 × 30 × 50
|
4
|
7.5 × 7.5
|
10
|
|
100 × 30 × 80
|
4
|
7.5 × 7.5
|
14
|
|
100 × 30 × 100
|
4
|
7.5 × 7.5
|
16
|
|
100 × 50 × 50
|
4
|
7.5 × 7.5
|
20
|
|
100 × 50 × 100
|
4
|
7.5 × 7.5
|
22
|
|
100 × 10 × 25
|
4
|
7.5 × 7.5
|
24
|

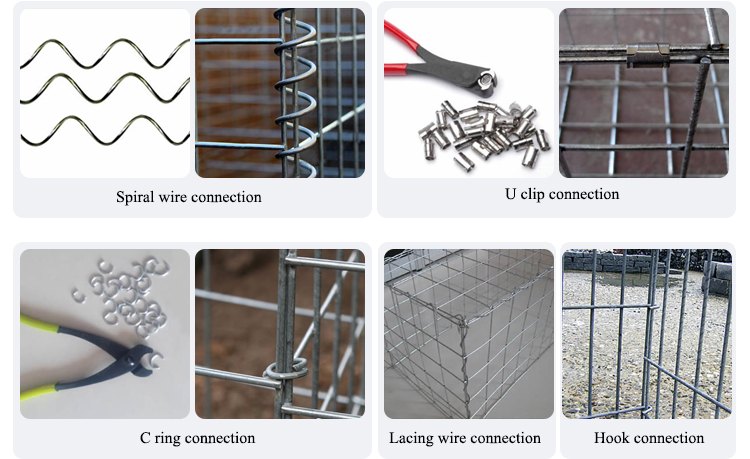

Connection types of welded gabion box
Welded gabion box can be connected in different method with different accessories. Here are the detailed accessories and connection method, refer to them and choose the perfect one suitable for you.
• Spiral wire connection.
• U clip connection.
• C ring connection.
• Lacing wire connection.
• Hook connection.
Post time: Oct-16-2023
