What is 3D fence and what is the application of it

ntroduction of 3D Fence Panel

3D Fence Panel is welded by high quality steel wire, because this kind of fence panel has 2-4 curves, so it is also called curved mesh panels, this fence panels are more reinforced than ordinary welded mesh panels because of the triangle curved, 3D fence panels can be connected with different posts, such as, peach-shaped posts, square posts, rectangular posts, round posts, etc. Composition fence, known as 3D security fence.

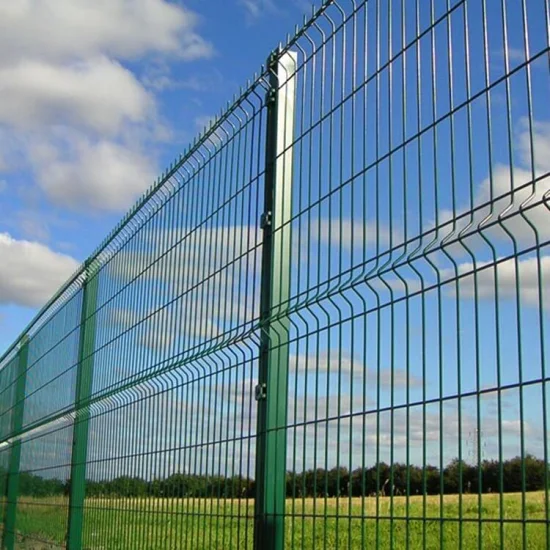

3D security fence mainly used to protect residential, stadium, warehouse, highway or airport service area, railway station and other areas, it has the characteristics of beautiful, strong and durable, not restricted by the terrain, easy to install.

Specification of 3D Fence Pane

Material: high quality galvanized wire or low carbon steel wire

Wire Diameter: 3 mm – 6 mm

 Mesh Opening: 50 mm × 100 mm, 55 mm × 100 mm, 50 mm × 200 mm, 55 mm × 200mm etc.

 Length: 2.5 m or 3.0 m.

 Height: 0.5m – 4.0 m, depending on your usage needs.

 Surface Treatment: hot dipped galvanized, PVC coated after galvanized or powder coated after galvanized.


Bending Type of 3d fence panel:

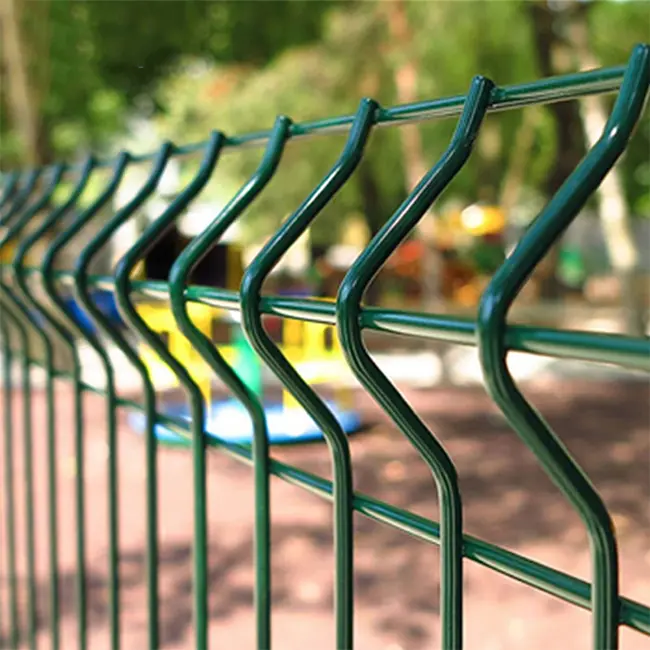

3D curved fence panel is made of high quality steel wire. These bends will significantly enhance the sturdiness of the mesh, and there are different numbers of curves on the safety fence panels depending on the height.

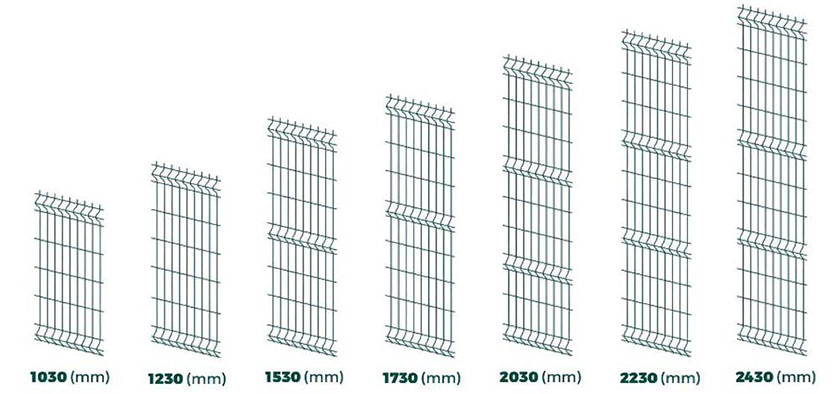

Technical Parameters of 3D Fence Panels:

 Height: 630 mm, 830 mm, 1030 mm, 1230 mm (2 curves)

Height: 1530 mm, 1730 mm (3 curves).

 Height: 2030 mm, 2230 mm, 2430mm (4 curves).


3D Fence Panel Application

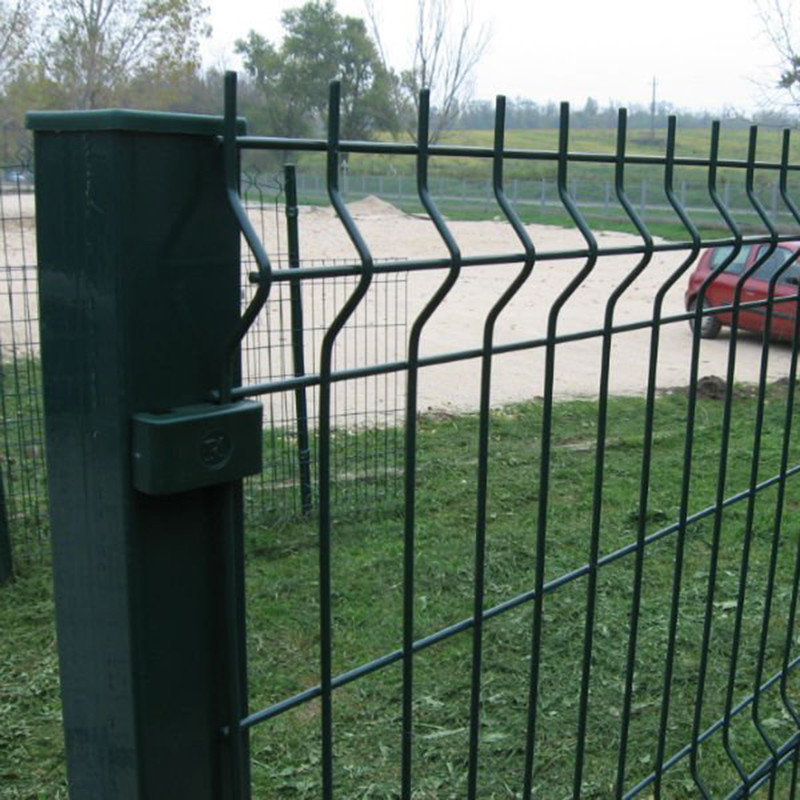

3d Fence Panel can form a security fence with square posts, Rectangular posts, peach shaped posts or round posts, 3d security fence is a kind of fence that is widely used as residential fence, park fence, factory fence, road fence, etc..

 Square Post: 50 * 50 mm, 60 * 60 mm, 80 * 80 mm, 100 * 100 mm.

Rectangular Post: 40 * 60 mm, 40 * 80 mm, 60 * 80 mm, 80 * 100 mm.

Peach shaped Post: 50 * 70 mm, 70 * 100 mm

Round Post: 38mm, 40mm, 42mm, 48mm

Surface Treatment: hot dipped galvanized,  PVC coated, powder coated.
